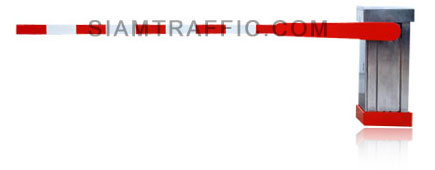

ไม้กระดกไฟฟ้ารุ่น AUTO ONE ของ HIGHWAY บ่งบอกถึงความเป็นมาตรฐานสากลในอนาคตของท่านที่ถูกออกแบบมาเพื่อใช้ในการกั้นรถ เข้า - ออกได้อย่างสะดวก รวดเร็ว และมีประสิทธิภาพสูงสุด ทนทาน อายุการใช้งานยาวนานกว่าระบบไฮโดรลิค
คุณสมบัติทั่วไปของไม้กระดก หรือเครื่องปิดกั้นแบบอัตโนมัติ
แขนกั้นเป็นอลูมิเนียมกล่องแบบหนา ติดสติ๊กเกอร์สะท้อนแสงสีขาว - สีแดง หรือสีเหลือง - สีดำ ช่องละ 30 ซม. ของ 3M เกรด DIAMOND (อายุการใช้งาน 10 ปี) ความยาวขนาด 1.5 - 6 เมตร พร้อมป้ายหยุดรับบัตร - คืนบัตร สามารถกดขึ้น - ลง ได้ตามความต้องการ ปลายแขนกั้นปิดด้วยพลาสติกครอบสีแดง สวิทซ์กดปุ่มบั� �คับ สามารถจะติดตั้งได้ตามความสะดวกของผู้ใช้ (ภายในป้อมยาม) หรือบังคับด้วยรีโมทคอนโทรลในระยะ 10 เมตร ตัวตู้เป็นชนิดเหล็กสแตนเลสพับ ปลอดสนิม มีฐานรอง และฝาปิดมิดชิดด้านบนของตู้ ฝาปิดด้านหน้าเป็นระบบบานพับ และล็อคด้วยกุญแจ
กล่องควบคุมระบบไฟฟ้า
ภายในตัวตู้จะมีเครื่องแมกเนติก 2 ตัว กับโอเวอร์โหลด 1 ตัว เพื่อควบคุมการจ่ายกระแสไฟฟ้าให้กับมอเตอร์ โดยมีสวิทซ์กดเป็นตัวควบคุมไฟฟ้าเข้ามอเตอร์ในการทำงาน 3 ขั้นตอน คือ FOR-REV-STOPสวิทซ์ควบคุม
FOR - ทำหน้าที่ยกแขนไม้กั้นให้ขึ้นไปจนสุดแล้วจะหยุดเอง REV - ทำหน้าที่ดึงแขนไม้กั้นให้ลงจนสุด STOP - ทำหน้าที่หยุดไม้กั้นในกรณีที่ต้องการให้หยุด ไม่ว่าไม้กั้นจะกำลังเคลื่อนขึ้นหรือลง จากนั้นจึงกดปุ่มบังคับ FOR หรือ REV ต่อไปลักษณะการต่อสายเข้ากับสวิทซ์
ต่อสายผ่านเบเกอร์ 5 แอมป์ เพื่อเดินเข้าไม้กั้น ลักษณะของสายที่ใช้ต่อเข้ากับสวิทซ์นั้นเป็นสายเคเบิลขนาด 10 x 1.5 SQ. mm. หรือ 6 x 1.5 SQ. mm. เฟก (หุ้มห่อสายไฟ) กันน้ำขนาด 6 หุน หรือท่อเหล็กขนาดเส้นผ่านศูนย์กลาง 6 หุนมอเตอร์
ทำหน้าที่หมุนซ้าย - ขวา ขับสายพานให้แก่เกียร์ทดเฟือง เพื่อยกแขนกั้น ทำงานตามคำสั่ง มีรายละเอียดดังนี้ 220 Volt AC. 50 Hz A.3 Ampere 4 poles 0.5 Horse Powerเกียร์ทดเฟือง
ทำหน้าที่ทดรอบมอเตอร์ให้ช้าลง ส่วนด้านเกียร์ทดเฟืองของแกนจะไม่ต่อเข้าแขนกั้นอีกที ซึ่งใช้แกนทดเฟืองขนาด 1:50 รอบของมอเตอร์ระบบโช๊คอัพ
เป็นระบบช่วยให้ลดการสั่นสะเทือนของแขนกั้นโดยใช้โช๊คอัพตัวใหญ่ ทำให้เกิดความนิ่มนวลมากขึ้นรวมกับโช๊คอัพสปริงอีกตัวอัดไม่ให้แขนกั้นตกลง กว่าปรกติที่ตั้งไว้Automatic barrier, Model Auto One, manufactured by Siam Traffic Company Limited, an equipment selected to demonstrated your future International Standard, designed for use as traffic stopper at an entrance or exit. Quick action with most efficient operation.
Feature of automatic barrier
- Housing : Made of stainless steel, completed with base plate and topside cover to completely enclosed working mechanism, hinged opening at the front can be lock with a padlock.
- Auto barrier is control electrically by push-button switches mounted at any convenience position.
- Barrier Arm : Made of rectangular aluminium tube, equipped with reflective sticker (3M Diamond Grade) of red and white and stop-return card sign. End covered with red plastic cap. In dimension of 10 x 4.5 cm.
Electrical Control Box of barricade
Inside the control box contain two magnetic switches and one overload device, to control electric current providing to a drive motor through three steps push-button switches, also one micro switch at automatically cut off current in emergency.Operation Control Push-Button Switches of parking barrier
FOR - For barrier raising to upright position and automatically stopped. REV - For barrier lowering to horizontal position and stopped automatically. STOP - For barrier stopping during movement, both up and down, can be stop at any position and resume by pushing FOR or REV button as required.Electrical Wiring To Switches
Switch wiring throught a 5 ampere circuit breaker to the barrier. Electric cable of 10 x 1.5 or 6 x 1.5- Square Millimeters were used. Electric cable of 10 x 1.5 sq.mm., or 6 x 1.5 sq.mm. PVC, VCT.
- Waterproof conduit or Galvanized pipe conduit of 3/4 Inch diameter.
Electric Drive Motor of automatic barrier
To turn in both left and right direction, to drive reduction gears set through a rubber web belt, to move barrier arm up or down as required. Electrical specification are as follows :- 220 Volt AC. 50 Hz
- A.3 Ampere
- 4 poles, 0.5 Horse Power
Reduction Gears Set
To reduce drive speed of motor to operate gear attached to barrier at ratio of 1:50 revolution.Shock Absorber System
Main shock absorbed to absorb end movements of barrier and a spring shock absorbed to act as lever control to keep the barrier in horizontal position.Read more... ไม้กระดกไฟฟ้า แบริเออร์ ไม้กั้นรถ AUTO BARRIER แบบไฟฟ้าหรือออโต้Auto barrier Barricade Barrier Parking barrier Automatic barrier
